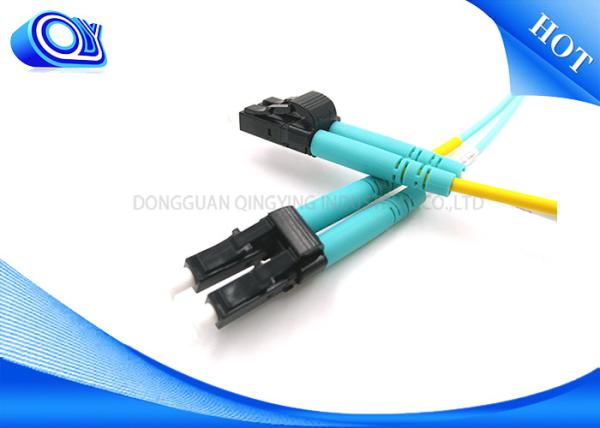

LC Duplex Multimode Fiber Optic Patch Cord Cable Factory FTTH FTTX

Name: LC Duplex Multimode Fiber Optic Patch Cord Cable Factory FTTH FTTX
Brand: Qingying
Price: 1 USD

Quality LC Duplex Multimode Fiber Optic Patch Cord Cable Factory FTTH FTTX wholesale

Brand Name : Qingying

Model Number : LC Multimode Duplex Fiber Optic Patch Cord

Certification : IEC 60794-2-10/11

Place of Origin : China Dongguan

MOQ : 20pcs

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 50000pcs per week

Packaging Details : 2000 Piece/Pieces per Day Material Preparation Time: 3 days (or inventory) Production & Assembly Time 7 days Testing & Packaging Time: 2 days Total Delivery Time: 12 days in 20,000pcs for safe delivery lead time. The faster delivery could be negotiable.

Name : LC Multimode Duplex Fiber Optic Patch Cord with the Return loss 35dB

Fiber Type : OM1(62.5/125),OM2(50/125)

Application : Patch Cords

Cable Length : 1/1.5/3/5/10/20m or custom

Catagory : Fiber Optic Patch Cord

Cable Outer Diameter : 0.9/2.0/3.0mm

Contact Now

LC Multimode Duplex Fiber Optic Patch Cord

Product Description

The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.It also widely used for high bit rate data transmission,telecommunications,tesing instruments,active device terminations,LAN/WAN and FTTX.

Technical specifications:

Item	Unit	LC/SC/FC/ST Fiber Patch Cord
		SM			MM
Fiber Diameter	um	9/125			65.5/125	50/125
Endface Type		PC	UPC	APC	PC	PC
Insertion Loss	db	≤0.2	≤0.15	≤0.2	≤0.1	≤0.1
Return Loss	db	≥45	≥50	≥60	-	-
Insert-pull Test	db	≤0.2	≤0.2	≤0.3	≤0.15	≤0.15
Interchangeability	db	≤0.1	≤0.1	≤0.15	≤0.1	≤0.1
Temperature Range	℃	-40~+80

Features:

---Good durability
---Good exchangeability
---High temperature stability
---Low insertion loss and back reflection loss
---Superior Quality Standard PC/UPC/APC Polishing
---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

Applications:

Gigabit Ethernet; Active device termination; Telecommunication networks; Video;
Multimedia; Premise installations; Local area networks; FTTH FTTX applications; CATV.
